Pump Major Parameters
Model No.:OWPD250L-24-P38
Power Input:24VDC(18-32VDC)
Rated power:250W
Rated Flow rate :2800L/H @ H=16M
Max Flow:4800L/H
Max Lift Head:20M
---------------------------------------------------------------------------
Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution
Medium temperature: Working long hours guaranteed -40℃ to +85℃ (-40°F to + 185°F)
Outlet diameter: 38mm(1.5inch)
Speed regulation: No (optional)
Fault Feedback signal:No (optional)
IP Grade:IP67
Noise control:≤60dB
Service life:＞20000hours
Weight: 2200g
System pressure
-0.5-4 Bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.
Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%
Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the service life)

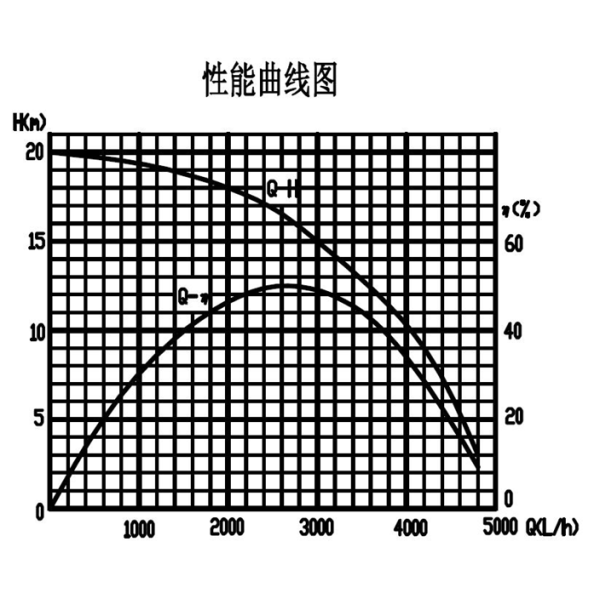

Performance Curve
Pump Advantages

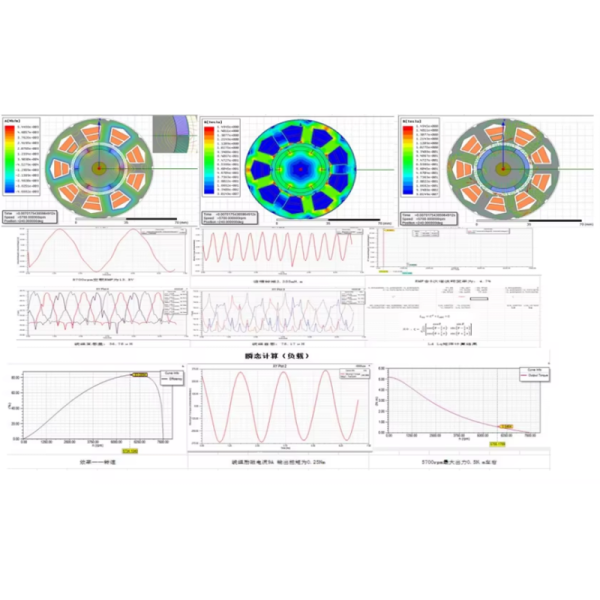

1. Professional electromagnetic theory design verification ,makes our pump motor 3-5% higher efficiency than other competitors.

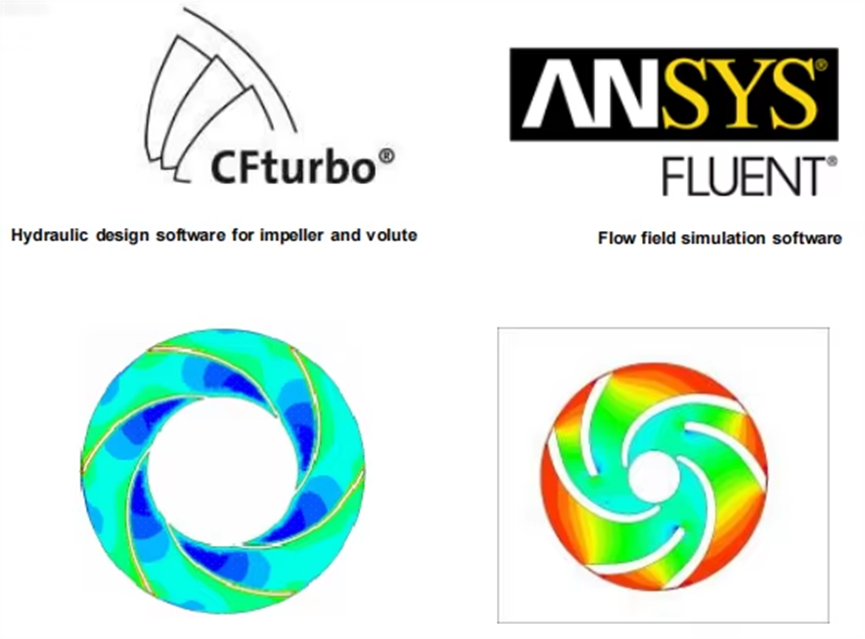

2. Simulation calculation of hydraulic design by professional software makes our impeller and volute reach to the best match for higher hydraulic efficiency than others
3. Automotive grade electronic components makes our pump withstand extreme harsh operating environment
Our clients come from 36 countires with high reputation in their fields

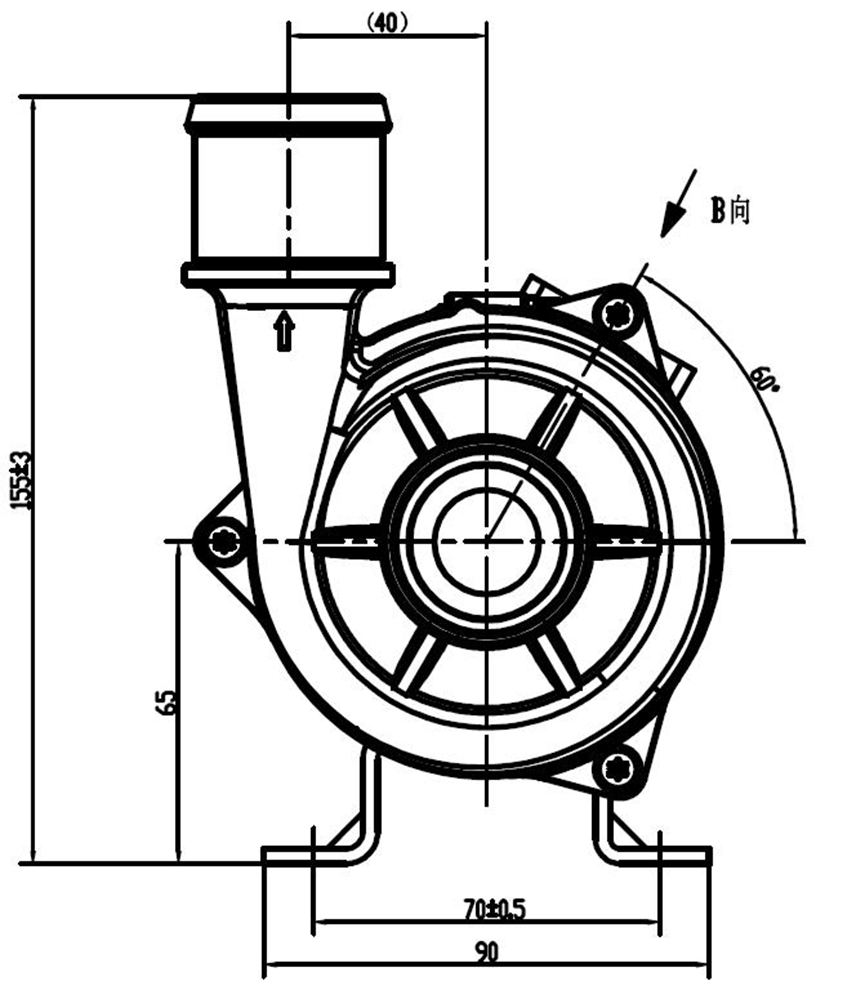

Pump overall size
